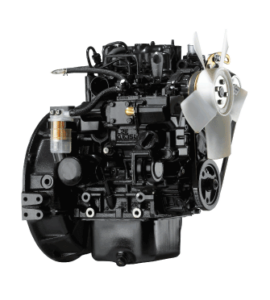

L2E-Z564SPH 10.0 kWm @ 3000 rpm Vriable Speed
| Engine type | Cylinder configuration | Bore x stroke (mm) | Total displacement (l) | Aspiration | Dry weight (kg) |
|---|---|---|---|---|---|
|
4-stroke, diesel |
2 in-line |
76 x 70 |
0.635 |
Natural |
71 |
| Output without fan (kWm) | Output without fan (bhp) | Output with fan (kWm) | Output with fan (bhp) | Engine speed (rpm) | Side gear PTO (Nm) |
|---|---|---|---|---|---|
|
10 |
13.4 |
9.7 |
13 |
3000 |
15.6 |
| Flywheel and housing |
|---|
|
Semi: SAE 6.5” / SAE #5 |
| Emission |
|---|
|
EU Stage V |
| Cooling system |
|---|
|
Water-cooled, forced circulation by centrifugal pump with thermostat |
L3E-Z564SPH 15.8 kWm @ 3000 rpm Variable Speed
| Engine type | Cylinder configuration | Bore x stroke (mm) | Total displacement (l) | Aspiration | Dry weight (kg) |
|---|---|---|---|---|---|
|
4-stroke, diesel |
3 in-line |
76 x 70 |
0.952 |
Natural |
83 |
| Output without fan (kWm) | Output without fan (bhp) | Output with fan (kWm) | Output with fan (bhp) | Engine speed (rpm) | Side gear PTO (Nm) |
|---|---|---|---|---|---|
|
15.8 |
21.2 |
14.7 |
19.7 |
3000 |
15.6 |
| Flywheel and housing |
|---|
|
Semi: SAE 6.5” / SAE #5 |
| Emission |
|---|
|
EU Stage V |
| Cooling system |
|---|
|
Water-cooled, forced circulation by centrifugal pump with thermostat |
S3L2-Z564SP 18.4 kWm @ 2400 rpm Variable Speed
| Engine type | Cylinder configuration | Bore x stroke (mm) | Total displacement (l) | Aspiration | Dry weight (kg) |
|---|---|---|---|---|---|
|
4-stroke, diesel |
3 in-line |
78 x 92 |
1.318 |
Natural |
135 |
| Output without fan (kWm) | Output without fan (bhp) | Output with fan (kWm) | Output with fan (bhp) | Engine speed (rpm) | Side gear PTO (Nm) |
|---|---|---|---|---|---|
|
18.4 |
24.7 |
17.7 |
23.7 |
2400 |
39.2 |
| Flywheel and housing |
|---|
|
semi: SAE 7.5” / SAE #5 |
| Emission |
|---|
|
EU Stage V |
| Cooling system |
|---|
|
Water-cooled, forced circulation by centrifugal pump with thermostat |
S4L2-Z363SPH 28.8 kWm @ 3000 rpm Variable Speed
| Engine type | Cylinder configuration | Bore x stroke (mm) | Total displacement (l) | Aspiration | Dry weight (kg) |
|---|---|---|---|---|---|
|
4-stroke, diesel |
4 in-line |
78 x 92 |
1.758 |
Natural |
155 |
| Output without fan (kWm) | Output without fan (bhp) | Output with fan (kWm) | Output with fan (bhp) | Engine speed (rpm) | Side gear PTO (Nm) |
|---|---|---|---|---|---|
|
28.8 |
38.6 |
26.2 |
35.1 |
3000 |
39.2 |
| Flywheel and housing |
|---|
|
semi: SAE 7.5” / SAE #5 |
| Emission |
|---|
|
EU Stage IIIA |
| Cooling system |
|---|
|
Water-cooled, forced circulation by centrifugal pump with thermostat |
S4Q2-Z365SP 34.6 kWm @ 2500 rpm Variable Speed
| Engine type | Cylinder configuration | Bore x stroke (mm) | Total displacement (l) | Aspiration | Dry weight (kg) |
|---|---|---|---|---|---|
|
4-stroke, diesel |
4 in-line |
88 x 103 |
2.505 |
Natural |
195 |
| Output without fan (kWm) | Output without fan (bhp) | Output with fan (kWm) | Output with fan (bhp) | Engine speed (rpm) | Side gear PTO (Nm) |
|---|---|---|---|---|---|
|
34.6 |
46.4 |
32.8 |
44.0 |
2500 |
n.a. |
| Flywheel and housing |
|---|
|
semi: SAE 7.5” / SAE #4 |
| Emission |
|---|
|
EU Stage IIIA |
| Cooling system |
|---|
|
Water-cooled, forced circulation by centrifugal pump with thermostat |
S4S-Z365SP 41.8 kWm @ 2300 rpm Variable Speed
| Engine type | Cylinder configuration | Bore x stroke (mm) | Total displacement (l) | Aspiration | Dry weight (kg) |
|---|---|---|---|---|---|
|
4-stroke, diesel |
4 in-line |
94 x 120 |
3.331 |
Natural |
245 |
| Output without fan (kWm) | Output without fan (bhp) | Output with fan (kWm) | Output with fan (bhp) | Engine speed (rpm) | Side gear PTO (Nm) |
|---|---|---|---|---|---|
|
41.8 |
56.1 |
40.5 |
54.3 |
2300 |
39.2 |
| Flywheel and housing |
|---|
|
semi: SAE 11.5” / SAE #3 |
| Emission |
|---|
|
EU Stage IIIA |
| Cooling system |
|---|
|
Water-cooled, forced circulation by centrifugal pump with thermostat |
